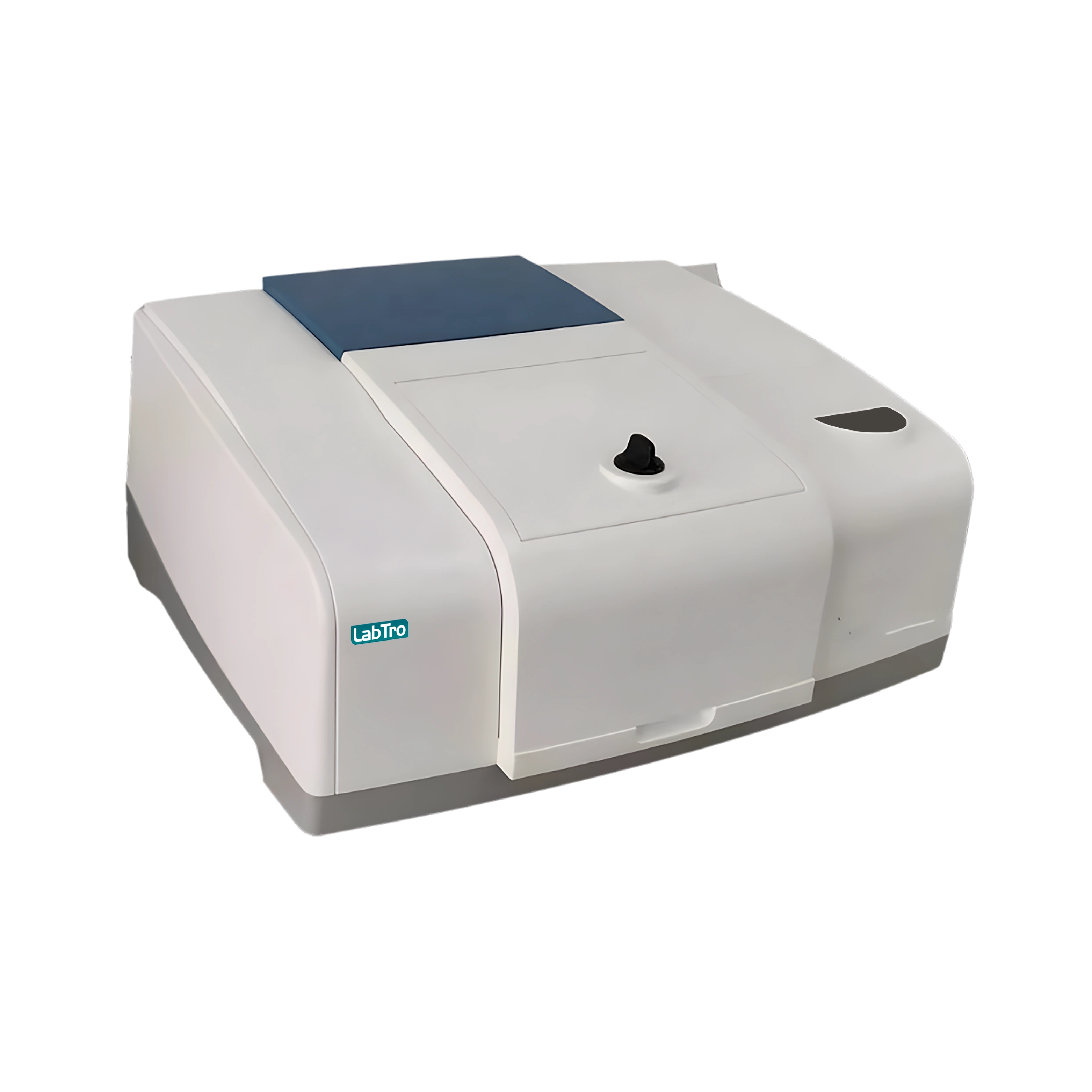

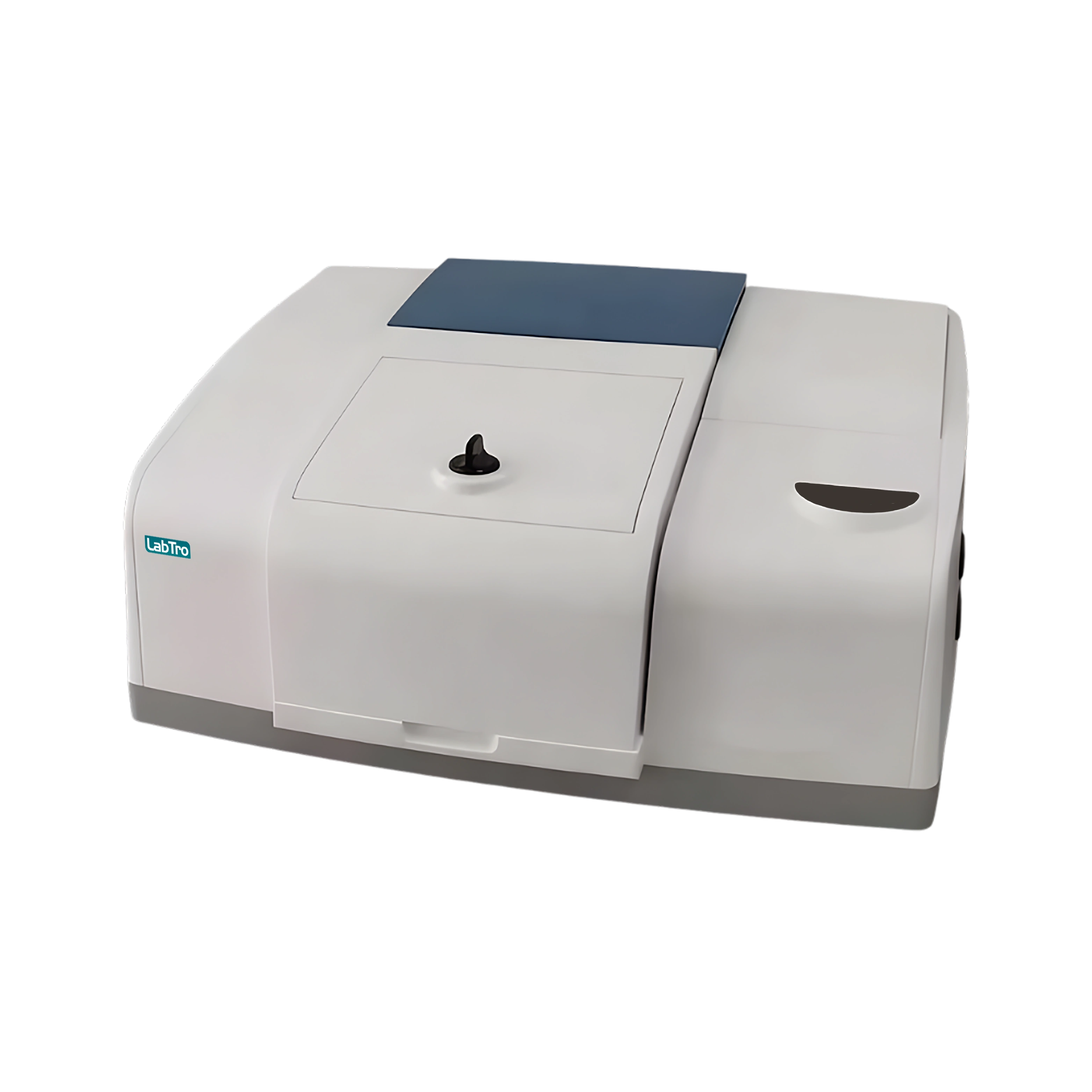

FTIR Spectrometer LT-FS101

Labtro FTIR Spectrometer LT-FS101 directs infrared radiation from its long-life air-cooled IR source into an interferometer containing a coated KBr beamsplitter and precision movable mirror. The beamsplitter divides the infrared beam into separate optical paths, and the returning beams recombine to form an interference signal containing information from many infrared wavelengths simultaneously. This modulated IR beam then interacts with the sample, where specific molecular bonds absorb characteristic frequencies according to their vibrational modes. The high-resolution detector records the resulting interferogram, while the 24-bit, 500 MHz A/D system converts it into digital data. The connected PC applies a Fourier Transform to convert the interferogram into an infrared spectrum showing absorbance or transmittance versus wavenumber. The resulting spectrum can then be used to identify functional groups, compare samples with reference spectra, and characterize material composition. The internal dynamic collimation and precision mirror-drive system help maintain optical alignment during scanning, while the desiccant protects the moisture-sensitive optical components.

Catalog

Qty:

$ 18,920.00

Specifications

Wave Range 7800 to 350 cm⁻¹
Resolution Superior to 0.9 cm⁻¹
Signal-to-Noise Ratio >50,000:1 at 4 cm⁻¹ resolution, sample and background scan for 1 min at 2100 cm⁻¹
RMS Signal-to-Noise Ratio 250,000:1
Detector High-Resolution Detector
Beamsplitter Coated KBr
Infrared Light Source Long-Life, Air-Cooled IR Light Source
Optical Bench Precision-Machined Cast Aluminium
Optical Configuration Integrated High-Stability Optical System
Interferometer Control Internal Dynamic Collimation
Mirror Drive Voice-Coil Driver with Precision Slide
Optical Moisture Protection Internal Desiccant Container
Electronic System 24-bit A/D Converter
A/D Operating Frequency 500 MHz
Computer Interface USB 2.0
Operation PC-Controlled
Main Power 110 to 220 V AC, 50 to 60 Hz
Operating Ambient Temperature 16 to 25°C
Operating Relative Humidity 20 to 50% RH
Operating-Site Power Requirement* AC 100 to 240 V, 47 to 63 Hz, 1.2 A, grounded
Gross Weight 15 kg

Features

    • High-Stability Optical Bench
    • Integrates major optical components on a cast-aluminium platform to reduce alignment requirements and improve scan repeatability.
    • Dynamic Interferometer Collimation
    • Maintains the interferometer in an optimized optical condition during measurement.
    • Precision Mirror Drive System
    • Uses a voice-coil driver and precision slide for stable scanning under laboratory operating conditions.
    • High Signal-to-Noise Performance
    • Provides >50,000:1 signal-to-noise ratio and RMS performance up to 250,000:1.
    • Wide Infrared Measurement Range
    • Covers 7800 to 350 cm⁻¹ for broad material characterization.
    • Moisture-Protected Optics
    • Integrated desiccant helps protect the KBr beamsplitter and other optical components from humidity.
    • High-Speed Digital Processing
    • Incorporates a 24-bit A/D converter operating at 500 MHz.
    • PC-Based Operation
    • Supports spectrum acquisition and analytical processing through connected computer software.
    • USB 2.0 Connectivity
    • Enables direct communication between the spectrometer and computer.
    • User-Replaceable Components
    • Certain system components can be replaced by the user, helping reduce maintenance downtime.

Standard Accessories

  • Standard AccessoryQuantity
    FTIR Spectrometer1
    Power Supply1
    Dust Cover1
    USB Cable1
    Power Cord1
    Screwdriver, 150 × 6 mm1
    Allen Wrench, 2.5 mm1
    Replacement Desiccant1
    Polystyrene Film1
    Software CD1
    User Manual1 Copy

Optional Accessories

  • Diamond ATR Accessory
    Provides direct FTIR measurement of solids, polymers, rubbers, fibers, films, coatings and small-volume liquid samples with reduced sample preparation. The pure diamond crystal offers durability for routine qualitative infrared analysis.

Application

  • Pharmaceutical Analysis — Identification and qualitative characterization of raw materials and pharmaceutical samples.
  • Petroleum Analysis — Infrared characterization of petroleum-related materials and products.
  • Chemical Analysis — Structural and qualitative assessment of organic and chemical compounds.
  • Polymer Analysis — Suitable with ATR accessory for plastics, rubbers and other polymer materials.
  • Film and Coating Analysis — Analysis of films, paint chips and coatings on glass or metallic surfaces.
  • Fiber Analysis — Qualitative infrared examination of fibrous samples.
  • Liquid Sample Analysis — Measurement of small quantities of liquid samples, including oils and ethanol-type samples.
  • Routine Research and Quality Control — Material identification and comparative spectral analysis in laboratory workflows
