Aerosol Photometer LT-AP201
Product1
Product2

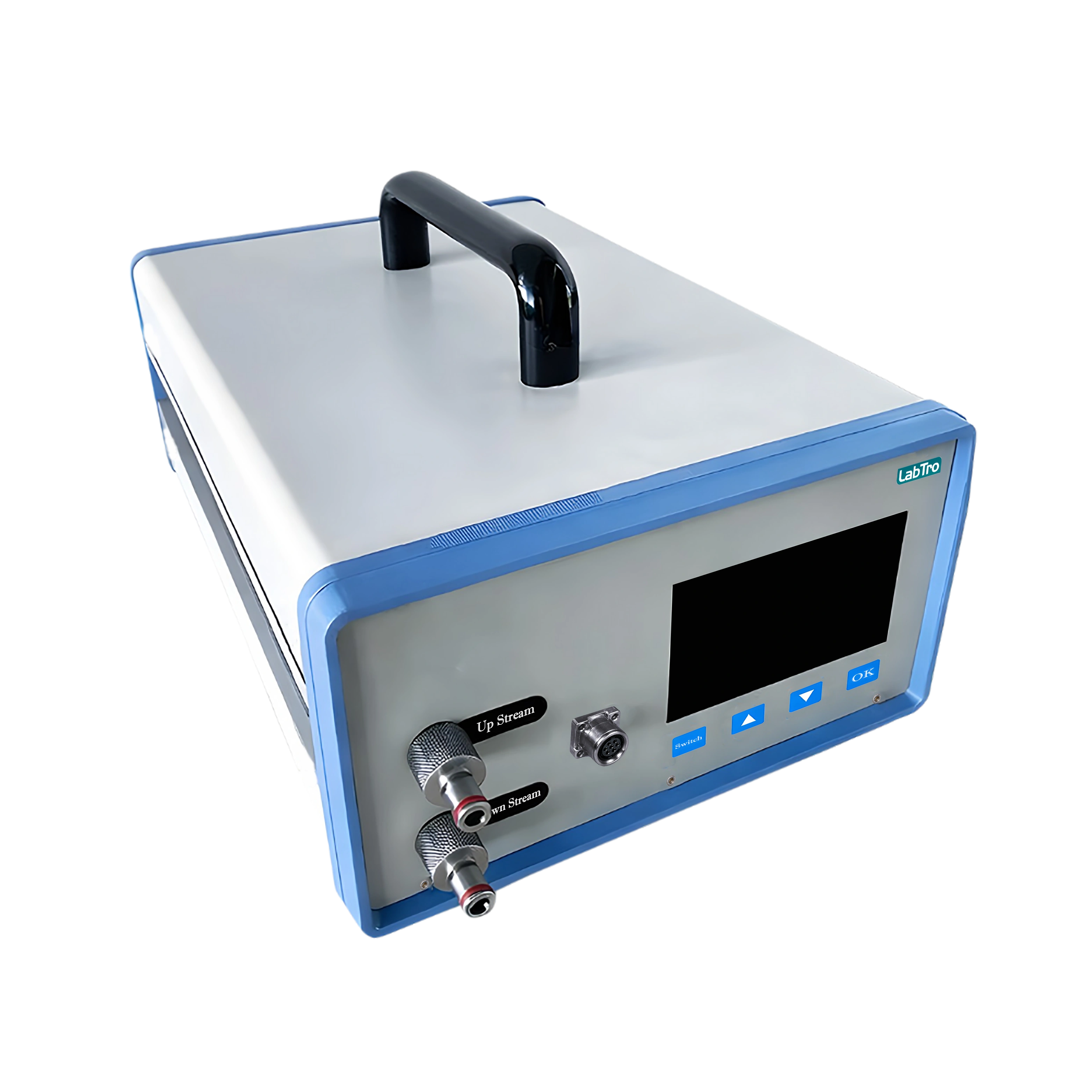

Aerosol Photometer LT-AP201

Aerosol Photometer LT-AP201 it is mainly used for on-site-high-efficiency filter system integrity testing. It scanning probe will ensure all the operating functions of the host. Outer material is made up of stainless steel material. It can be connected to computer through USB data interface. High power lithium battery is used as power supply. Maximum 10000 groups of data can be stored.

Catalog

Qty:

$ 14,850.00

Specifications

Dynamic Range Up to 600 μg/L
Sensitivity 1% of reading in ≥ 0.01 to 100%
Repetitiveness 0.5% of reading in ≥ 0.01 to 100%
Automatic Range 0.0001% to 100.0% (automatic switching)
Supported Aerosol Solutions PAO, DEHS, Ondina
Alarm System Audio and visual alarms on control panel and scanning probe; adjustable/cancellable
Operating Modes Continuous mode, storage mode, printing mode
Light Source Solid-state scattering chamber; low power, low heat, high stability
Luminometer Lifespan Estimated 50,000 to 100,000 hours
Display 2.8-inch LCD screen
Output Interface RS232 port
Probe & Handle 2.5m connection length
Instrument Shell Die-cast aluminum; durable, easy to service; integrated handle
Power Supply 220V, 50/60 Hz
Dimension 260 × 370 × 160 mm
Weight 10.5 kg

Features

  • Automatic Range Switching
  • Long-Life Light Source
  • Compatible Test Aerosols
  • High Sensitivity
  • Durable Construction

Standard Accessories

  • Two Sampling Tubes

    Power Cord

Application

  • Aerosol Photometer LT-AP201 is used for real-time detection of aerosol particle concentrations, primarily in HEPA/ULPA filter integrity testing, cleanroom validation, and leak detection in controlled environments like pharmaceuticals, biotechnology, hospitals, and semiconductor manufacturing.
