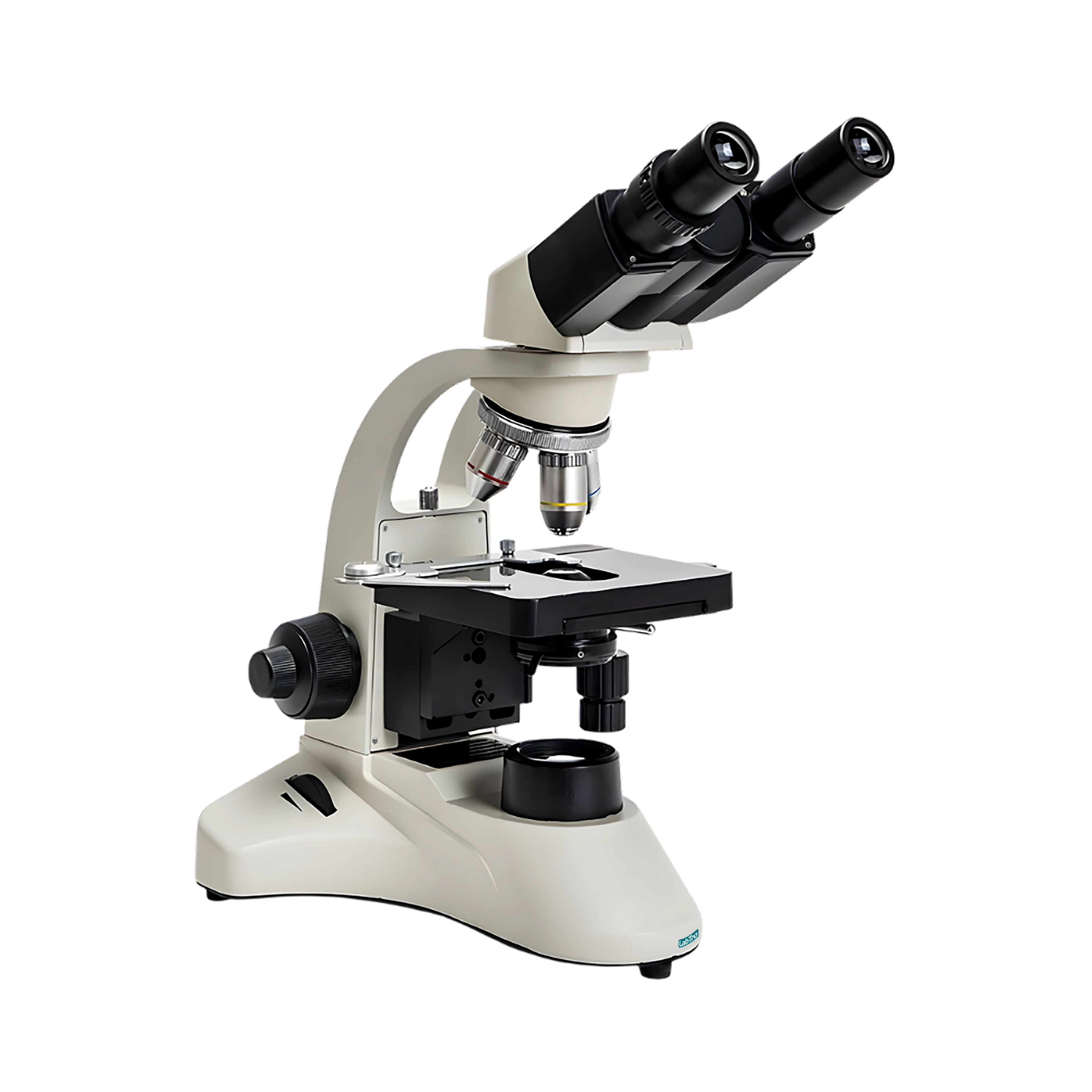

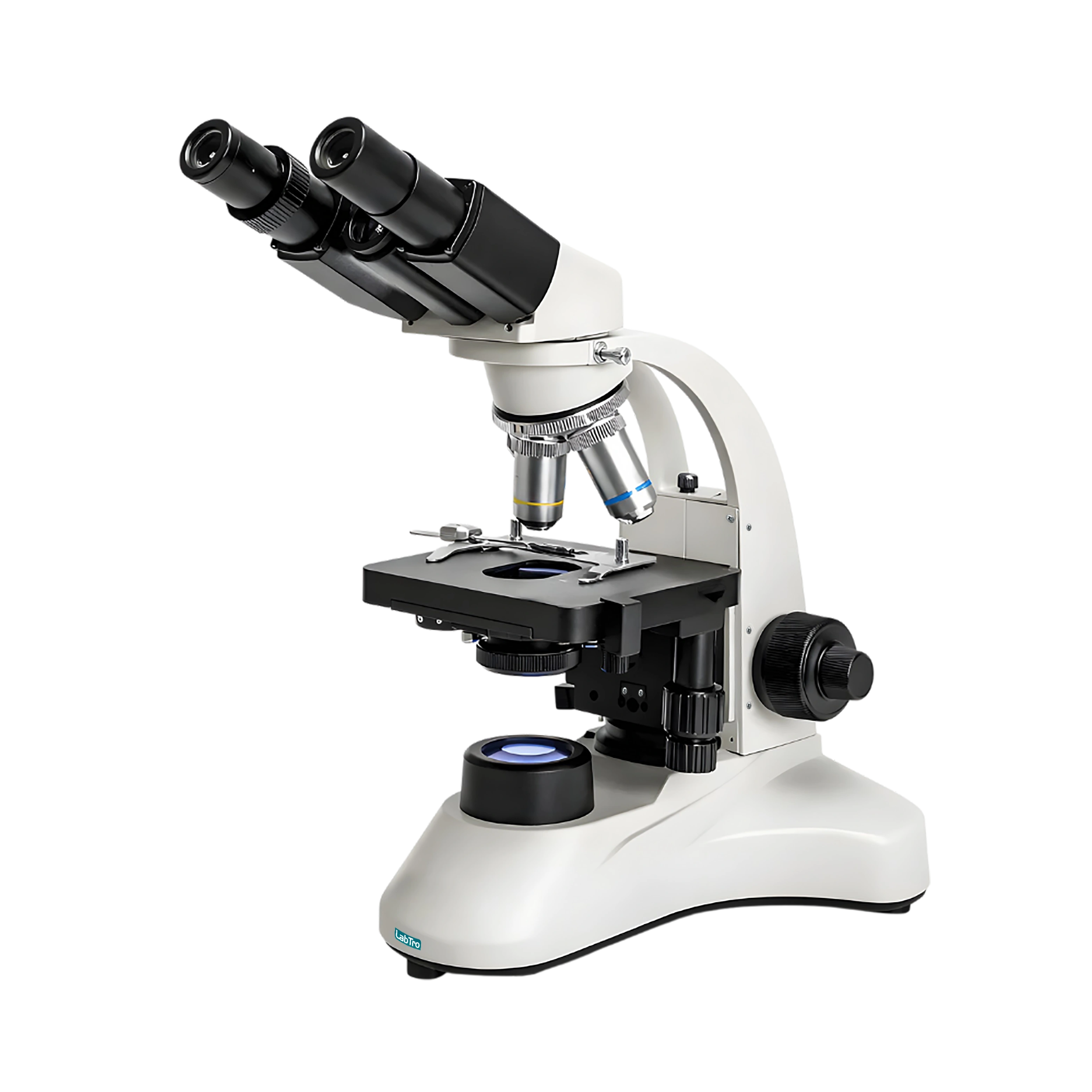

Biological Microscope LT-BM106

Biological Microscope LT-BM106 features 40–1600X zoom magnification for versatile observation. It has a binocular 30° inclined viewing head for ergonomic comfort and high-quality plan achromatic objectives for sharp, precise imaging. Designed for long-duration use with minimal strain. Meets international optical quality standards for reliable laboratory performance. Perfect for biology research, educational labs, and clinical studies.

Catalog

Qty:

$ 1,790.00

Specifications

Optical Configuration Finite Optical System
Head Design Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
Magnification Range 40X to 1600X
Objectives Plan Achromatic objectives 4x, 10x, 40x (Spring), 100x (Spring, oil)
Eyepiece Wide field WF10X/18mm and Wide field WF16X/15mm
Nosepiece Inward, Quadruple revolving nosepiece
Focusing Mechanism Coaxial coarse & fine focusing knob, coarse focusing range 20 mm, fine focusing graduation 0.002 mm
Mechanical Stage Double layer mechanical stage size: 115 × 125 mm, range: 76 × 52 mm
Condenser System Abbe condenser N.A.1.25, with iris diaphragm, and height adjustment knob
Illumination 3W LED lamp, brightness adjustable
Power Rating External power supply (adapter), AC 100V-240V, DC 5V/2A
Operating Voltage 220 V, 50 Hz
Weight 12 kg

Features

  • Finite optical system
  • 40–1600X zoom magnification
  • Binocular 30° inclined head
  • Built-in handle for portability
  • Plan achromatic objectives
  • Smooth mechanical focus

Application

  • Biological Microscope LT-BM106 is ideal for microscopic analysis in medical labs, tissue culture, gemology, metallurgy, electronics inspection, and various other applications.
