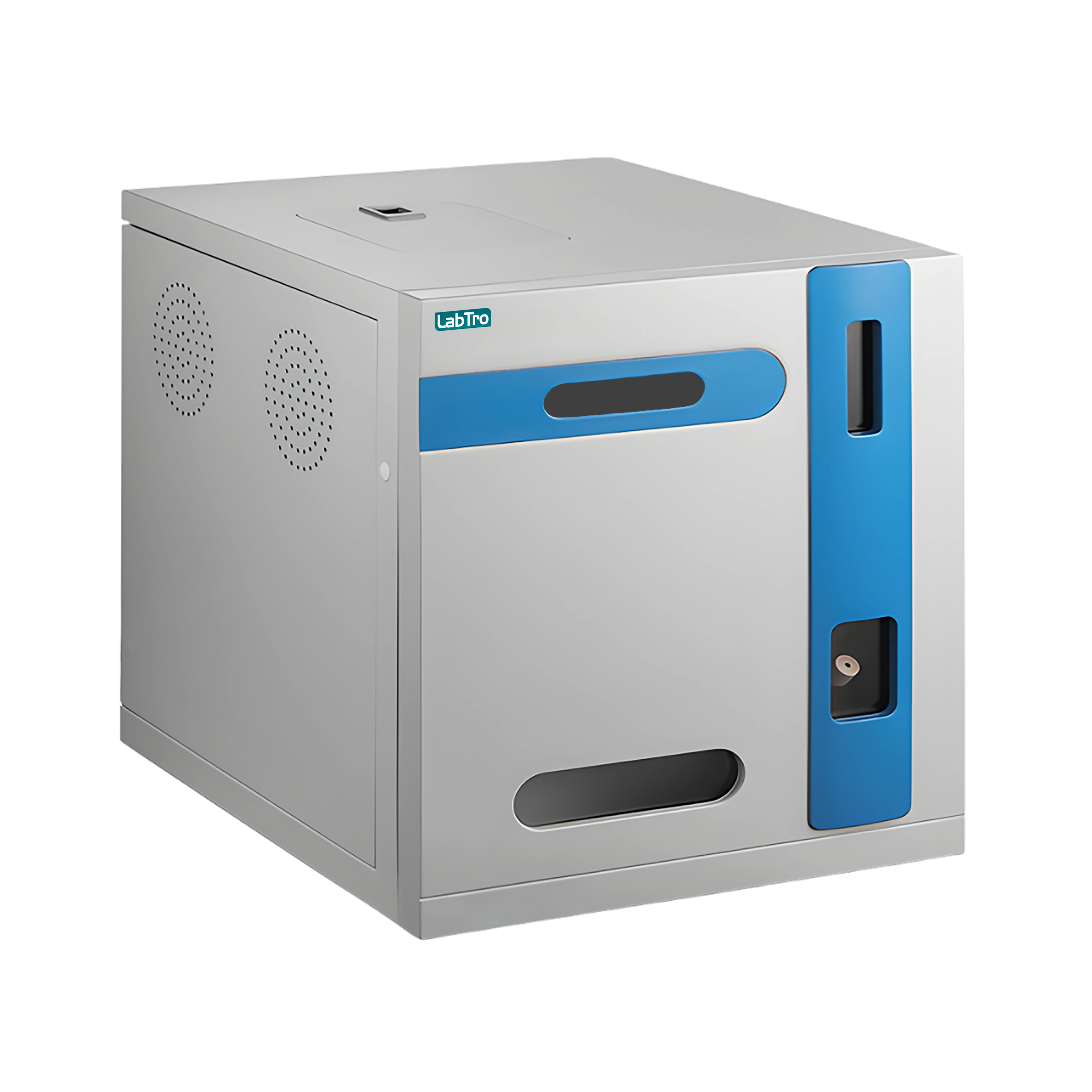

TOC Analyzer LT-TOC103

TOC Analyzer LT-TOC103 offers a measurement range of 0 to 30,000 mg/l and features PID temperature control technology for enhanced accuracy. It operates with optional CFR software and supports analysis parameters, including TC, TIC, TOC, and NPOC. It has multi-functional PC software, with optional CFR software, and complies with 21 CFR PART 11. Our TOC Analyzer is ideal for applications in water quality monitoring, soil analysis, chemical and petrochemical quality control, boiler feedwater testing, and the detection of organic contaminants

Catalog

Qty:

$ 18,700.00

Specifications

Measurement Range 0 to 10000mg/l
Detection Limit 50 μg/l
Digestion Mode High Temperature Combustion
Detector NDIR
Parameters TC, TIC, TOC, NPOC
Gas Requirement Oxygen/Nitrogen ≥ 99.995 %
Application Liquid Sample, Gas Sample, Solid Sample
Maximum Salinity 85 g/l
Operation mode PC Control
Repeatability 3%
Power 220 ± 10 V, 50 / 60 Hz, 1 KW
Dimension 430 x 455 x 440 mm
Net Weight 30 Kg
Gross Weight 55 Kg

Features

  • NDIR Detector
  • Leakage Detection
  • PC Software
  • CFR Software
  • Gas Flow Control
  • Modular Design
  • Total Carbon
  • Organic Carbon
  • Inorganic Carbon
  • Liquid, Gaseous, Solid Samples
  • High Temperature Combustion

Optional Accessories

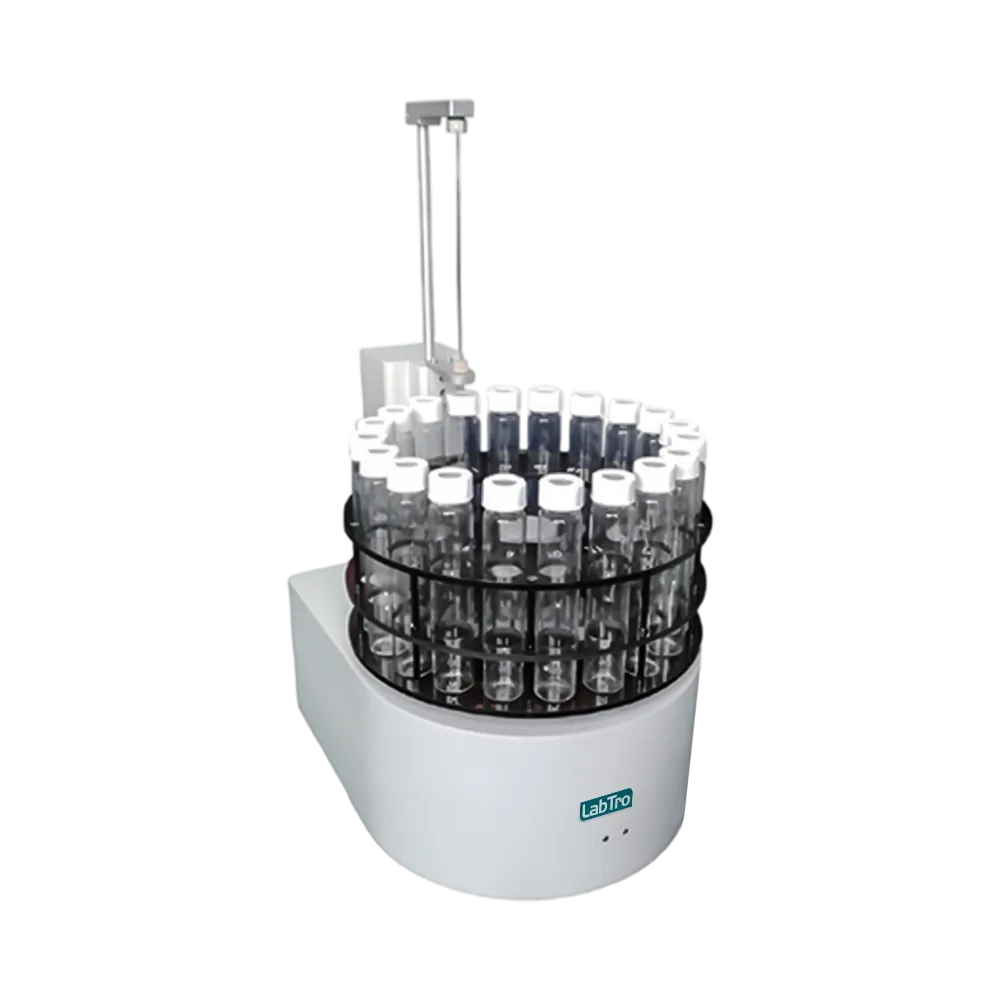

    1. Auto Sampler

    Parameter

    Specification

    Sample TypeLiquid sample
    Max. Number of Samples19 sample positions and 1 cleaning position
    Volume of Sample Bottle60 mL
    Ambient Temperature0 to 40 ℃
    Relative Humidity≤ 85%
    PowerAC100–240V, 50/60 Hz, 120 W
    Price$8200



    1. 21 CFR Part 11 PC Software
    Price$560

Application

  • Our TOC Analyzer LT-TOC103 is extensively used in various applications including water quality monitoring, pharmaceutical purity testing, environmental monitoring, soil analysis, air quality testing, food and beverage quality control, chemical and petrochemical quality control, industrial effluent monitoring, boiler feed water testing, cooling water management, research and development, regulatory compliance, organic contaminants detection, wastewater treatment, and ingredient purity testing.
