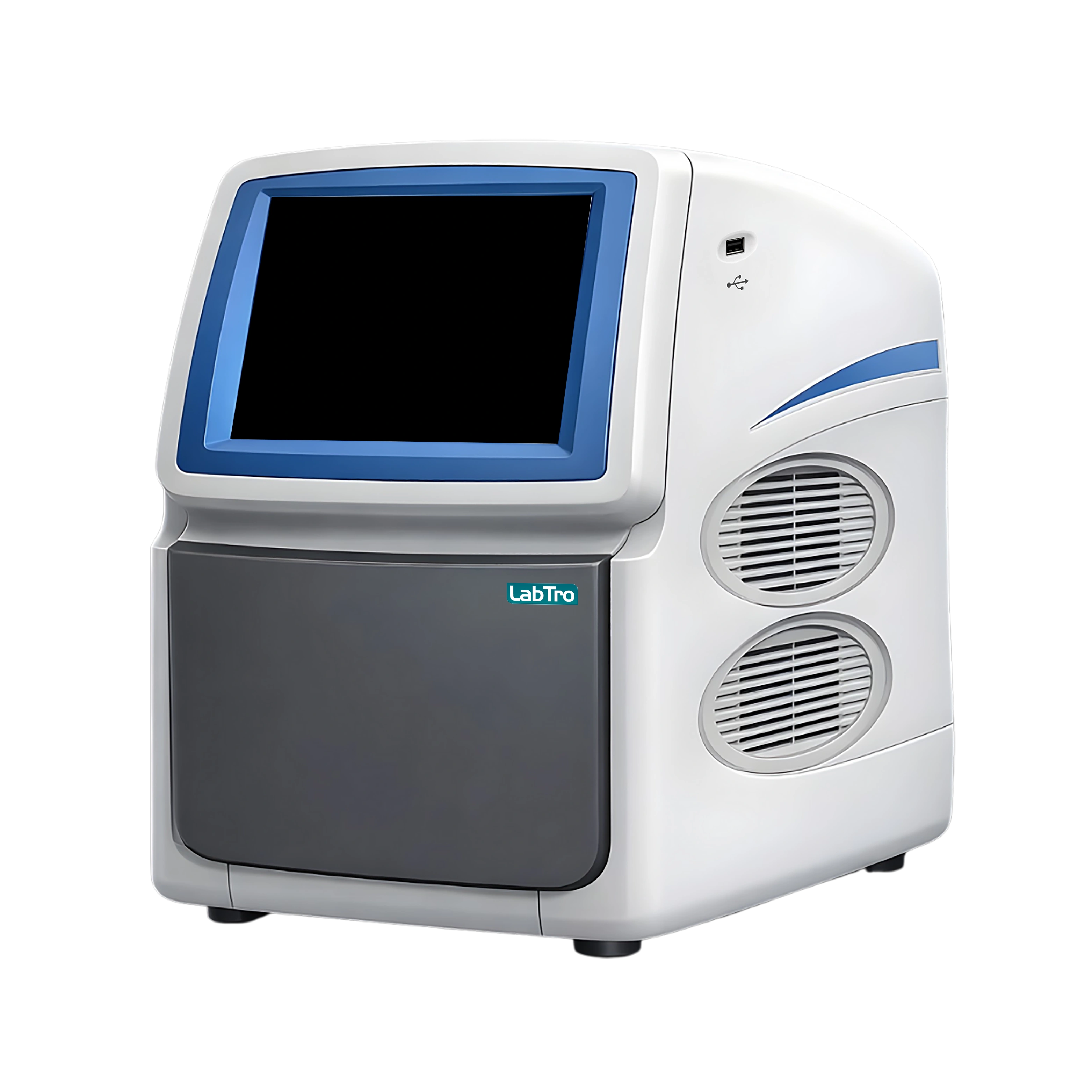

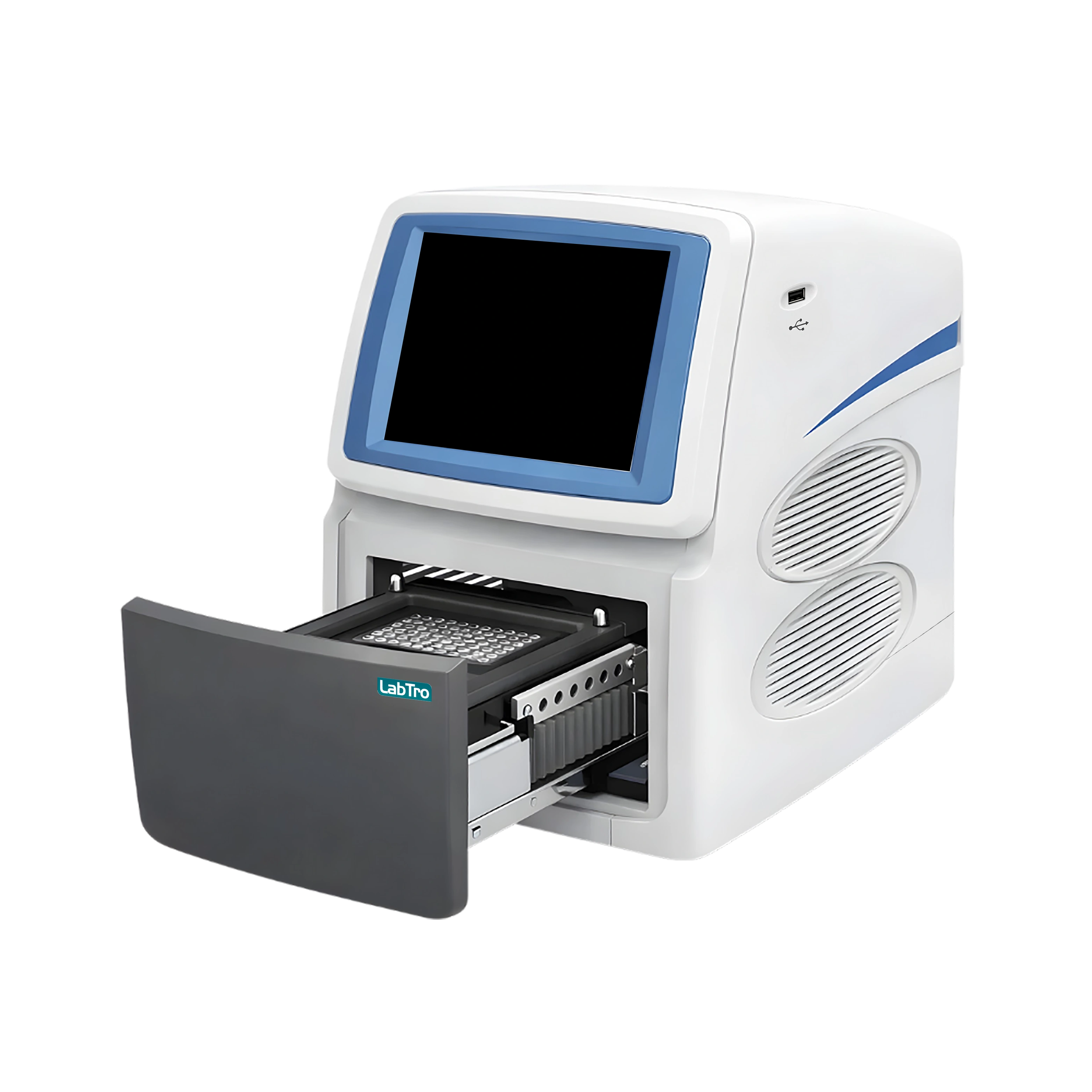

Real Time PCR LT-RTP101

Real Time PCR LT-RTP101 offers a throughput of 1 to 96 wells for flexible testing needs. It has four independent fluorescence channels to detect multiple targets in one run. Built-in LED light source provides stable illumination during operation. Equipped with precise temperature control and uniform heat distribution, it ensures consistent performance. Our PCR system delivers reliable, reproducible, and efficient real-time analysis.

Catalog

Qty:

$ 22,000.00

Specifications

Throughput 1 to 96
Fluorescence Channels 4
Fluorescence Scanning Time 7s
Suitable Consumables 0.2 ml 96-well plates, 8-tube strips, single tubes (clear, frosted, white)
Light Source High-brightness, long-life, and maintenance-free LED light source, excitation from the top
Detector Photodiode (PD), top scanning
Excitation Range CH1: 465nm, CH2: 527nm, CH3: 580nm, CH4: 632nm, CH5: 680nm, CH6: 465nm
Detection Range CH1: 510nm, CH2: 563nm, CH3: 616nm, CH4: 664nm, CH5: 730nm, CH6: 616nm
Fluorescence Dynamic Range Adjustable
Sample Dynamic Range From 101 to 1010 copies
Heating Method Peltier
Max Heating Rate ≥6.1°C/s
Max Cooling Rate ≥5.0°C/s
Uniformity of Thermo Control ±0.1°C
Accuracy of Thermo Control ≤0.1°C
Gradient Interval Range 1°C to 40°C
Gradient Block 12 row
Special Temperature Protocol Thermal gradients PCR, Long PCR, Touch Down PCR
Sample Testing Linearity & Repeatability Linear Correlation: r >0.999; Repeatability: cycle threshold (Ct) value CV <0.5%
Control Modes Mode 1: 10.4-inch touch screen; Mode 2: PC direct control
Power Failure Protection Auto-start experiments after power recovery, no need to wait for PC software
Data Storage & Transmission Upload/download via USB disk, 1000 results stored in machine
Reporting Function Templates reserved; customized experiment report
Key Applications Relative quantification, absolute quantification, melting curve analysis, SNP analysis
Operating System for PC Windows 7, Windows 10
Power Consumption 900VA
Power Supply AC 100 to 240V, 50 to 60Hz
Dimension 355 × 475 × 484 mm
Net Weight 30 kg

Features

  • Auto recovery after power loss
  • Advanced analysis software
  • Easy data storage & transfer
  • Multiple control options
  • Peltier heating & cooling system

Application

  • Real Time PCR LT-RTP101 enables fast and precise detection, quantification, and analysis of DNA and RNA, supporting applications in disease diagnosis, gene expression studies, pathogen identification, and genetic variation research.
