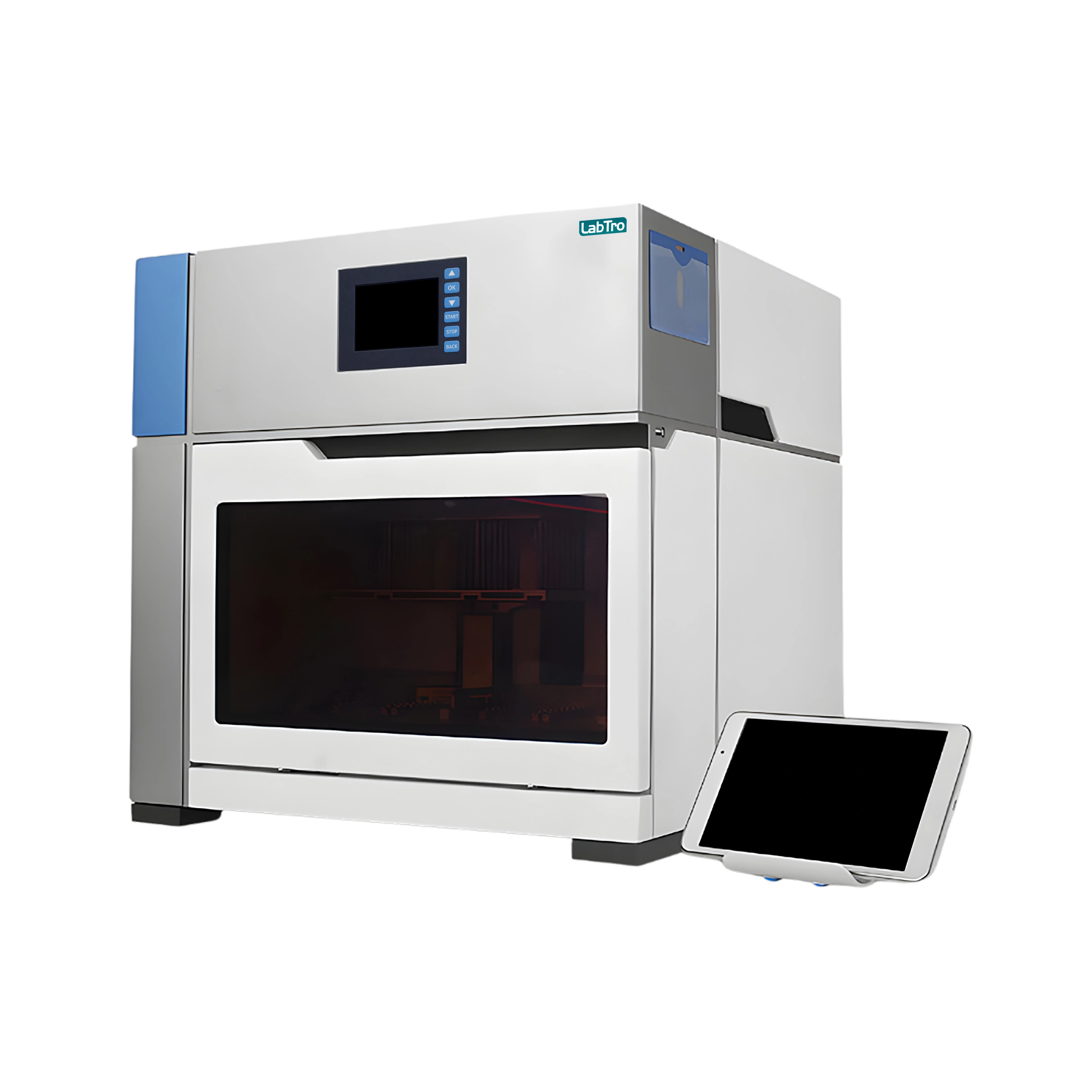

Nucleic Acid Extractor System LT-NAE302

Nucleic Acid Extractor System LT-NAE302 is designed with a high throughput of 32 with a processing volume of 30 to 1000µL for efficient sample handling. It supports suitable consumables like 96 well plates and 6 tube strips for versatile extraction needs. Equipped with a magnetic beads-based extraction kit reagent type, it ensures reliable results. Built-in UV disinfection module provides contamination control and maintains sample integrity. Our Nucleic Acid Extractor System is ideal for molecular diagnosis and forensic testing.

Catalog

Qty:

$ 9,900.00

Specifications

Throughput 32
Processing Volume 30 to 1000 µL
Sample Volume 200 µL
Magnetic Bead Residue ≤1%
Suitable Consumables 96-Well Plates, 6-Tube Strips
Heating Temperature Lysis Heating: Room Temperature to 120℃
Mixing Mode Multi-Mode and Multi-Gears
Reagent Type Magnetic Beads-Based Extraction Kits
Operation Mode A. Cloud-Enabled Control via Smartphones/Tablets (Android)
Experimental Storage >500 Programs Saved in Android App
Program Management Programs Can Be Created, Edited, Applied, and Deleted with High Flexibility
Contamination Control Built-In UV Disinfection Module
Power Failure Protection Option to Continue Experiment After Power Restoration
Connection Port Type USB, Ethernet, USB Type-B
Network Connection Cloud-Enabled Control via Smartphone/Tablet
Operating Temperature Range 10 to 30℃
Operating Humidity Range 20% to 85%
Power Consumption 600 W
Power Supply AC 100 to 240 V, 50/60±1 Hz
Dimensions 435 × 440 × 445 mm
Weight 31.5 kg

Features

  • Machine keypad operation
  • Multi-mode mixing
  • Cloud-enabled control on smart phone
  • Intuitive interface
  • Power failure protection

Application

  • Nucleic Acid Extractor System LT-NAE302 is ideal for molecular diagnostics, genetic identity testing, forensic testing, biomedical research, and gene expression analysis.
