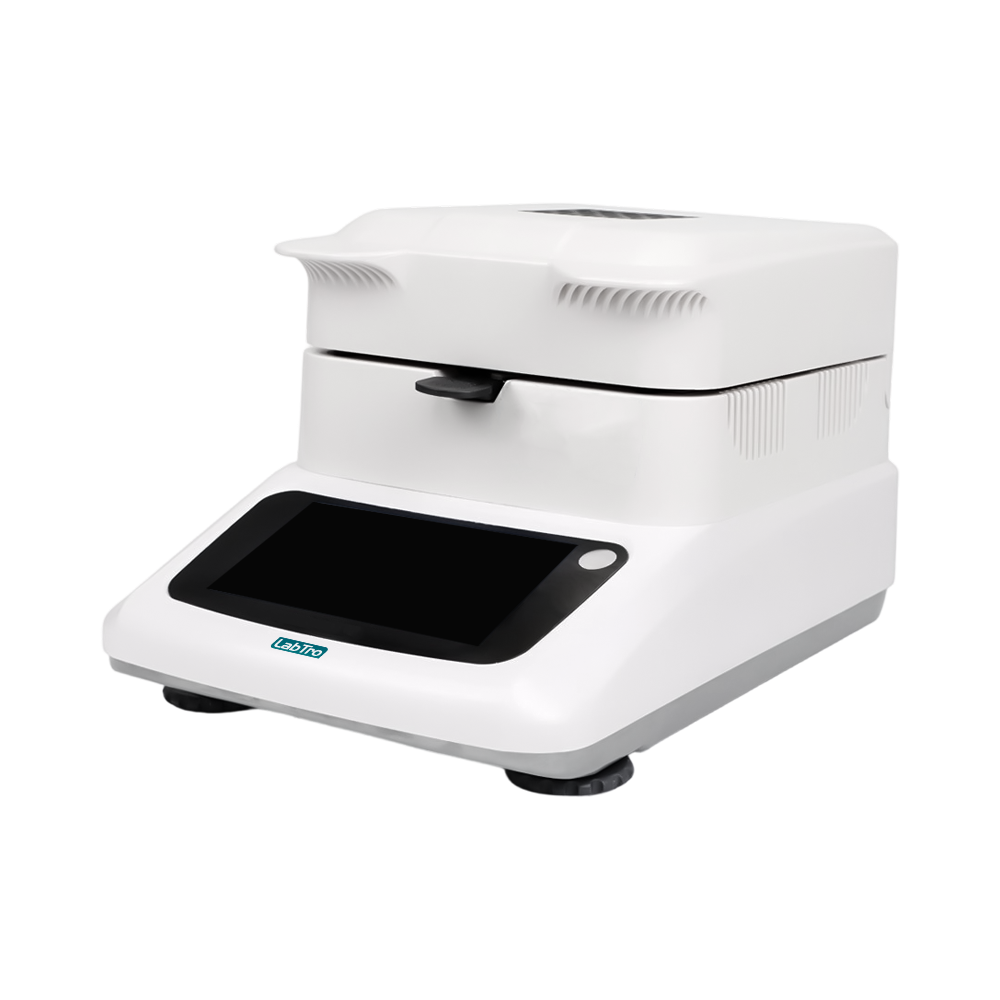

Halogen Moisture Analyzer LT-HMA101

Halogen Moisture Analyzer LT-HMA101 is equipped with a heating range of 40 to 200 °C and operates with a PT100 temperature sensor.It features automatic, manual, and timed stop modes, offering flexibility in the drying process. Built with a waterproof, anti-corrosion, and high-temperature-resistant structure. It provides real-time data on temperature, time, moisture content, solid content, and drying curves. Our Halogen Moisture Analyzer is used thermogravimetric method, which integrates a weighing and heating unit for efficient moisture and solid content measurement.

Catalog

Qty:

$ 2,142.00

Specifications

Weighing Readability 0.001 g
Weighing Range 200 g
Moisture Readability 0.01%
Heating Temperature Range 40 to 200 °C (1 °C increments)
Up to 230 °C (customizable)
Sample Pan Diameter Φ 90 mm, stainless steel
Data Storage 100 sets
Interface Standard RS232 interface for printer
PC and peripherals
USB customizable
Power Consumption 450 W
Display 5-inch touch screen
Heating Modes Gentle, Standard, Rapid
Heating Source Halogen Lamp, ring-shaped
Sensor Imported German HBM
Dimensions 220 × 340 × 210 mm
Packaging Dimensions 430 × 290 × 330 mm
Net Weight 3.8 kg
Gross Weight 4.8 kg

Features

  • Accurate Temperature Control
  • Large Data Storage
  • Customizable Data Processing
  • Enhanced Security
  • Ready to Use
  • 5-inch Color Touch Screen
  • High-Precision Weighing
  • Versatile Applications

Application

  • Halogen Moisture Analyzer LT-HMA101 is extensively used in research institutes, universities, inspection and metrology facilities, and industrial enterprises. It efficiently dries and measures the solid content and moisture levels of samples.
