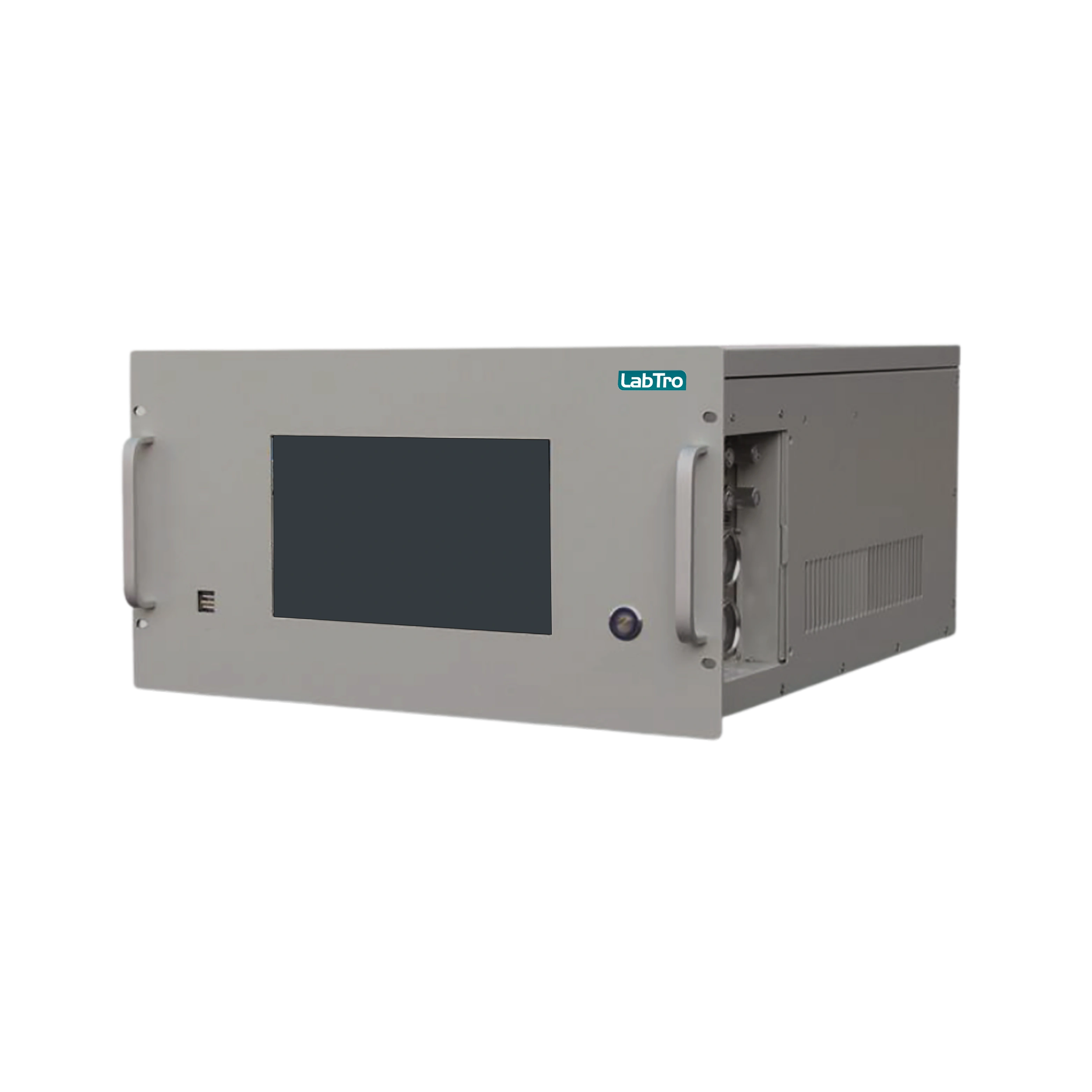

Online Gas Chromatography LT-OGC201

Labtro Online Gas Chromatography LT-OGC201 delivers 100 ± 50 mL/min sample flow, starting with sample intake and conditioning, where gas is filtered and prepared for analysis. Prepared gas moves through the analytical stage to generate measurement data for routine monitoring and recordkeeping. Results are reviewed and transferred for documentation, supporting an organized workflow from sample preparation through analysis and reporting.

Catalog

Qty:

$ 50,600.00

Specifications

Analysis Method Gas Chromatography
Detector Type Dual TCD
Measured Parameters C1–C6+, CO₂, N₂, Calorific Value, Density
Sample Flow Rate 100 ± 50 mL/min
Sampling Mode Positive Pressure Sampling
Warm-Up Time ≤ 25 min
Inlet Pressure 0.2 MPa
Measuring Range 0–100%
Dynamic Linear Range >10⁵
Baseline Drift ≤ 0.02 mV / 30 min
Baseline Noise ≤ 0.02 mV
Output Signal 4–20 mA
Filtration Precision < 5 μm
Operating Temperature 0°C to +45°C
Relative Humidity ≤ 90% RH
Atmospheric Pressure 50–106 kPa
Inlet Tubing Size Φ6 × 1 mm PTFE
Temperature Control Range Ambient +5°C to 450°C
Pressure Setting Range 0–100 psi
Pressure Accuracy 0.01 psi
Power Supply AC 220 V, 50 Hz
Cabinet Dimensions (L × W × H) 900 × 800 × 2000 mm
Net Weight 200 kg
Gross Weight 240 kg

Features

  • Continuous Gas Composition Monitoring
  • Automated Sample Conditioning Workflow
  • Real-Time Analytical Data Processing
  • Integrated Gas Measurement Control
  • Streamlined Monitoring and Reporting
  • Process-Oriented Gas Analysis Operation

Application

  • Gas Monitoring: Measures and records gas composition.
  • Sample Verification: Reviews conditioned gas samples.
  • Process Analysis: Monitors collected gas samples.
  • Calorific Testing: Determines gas energy content.
  • Data Reporting: Generates analytical records.
  • Workflow Monitoring: Supports sample-to-report processing.
