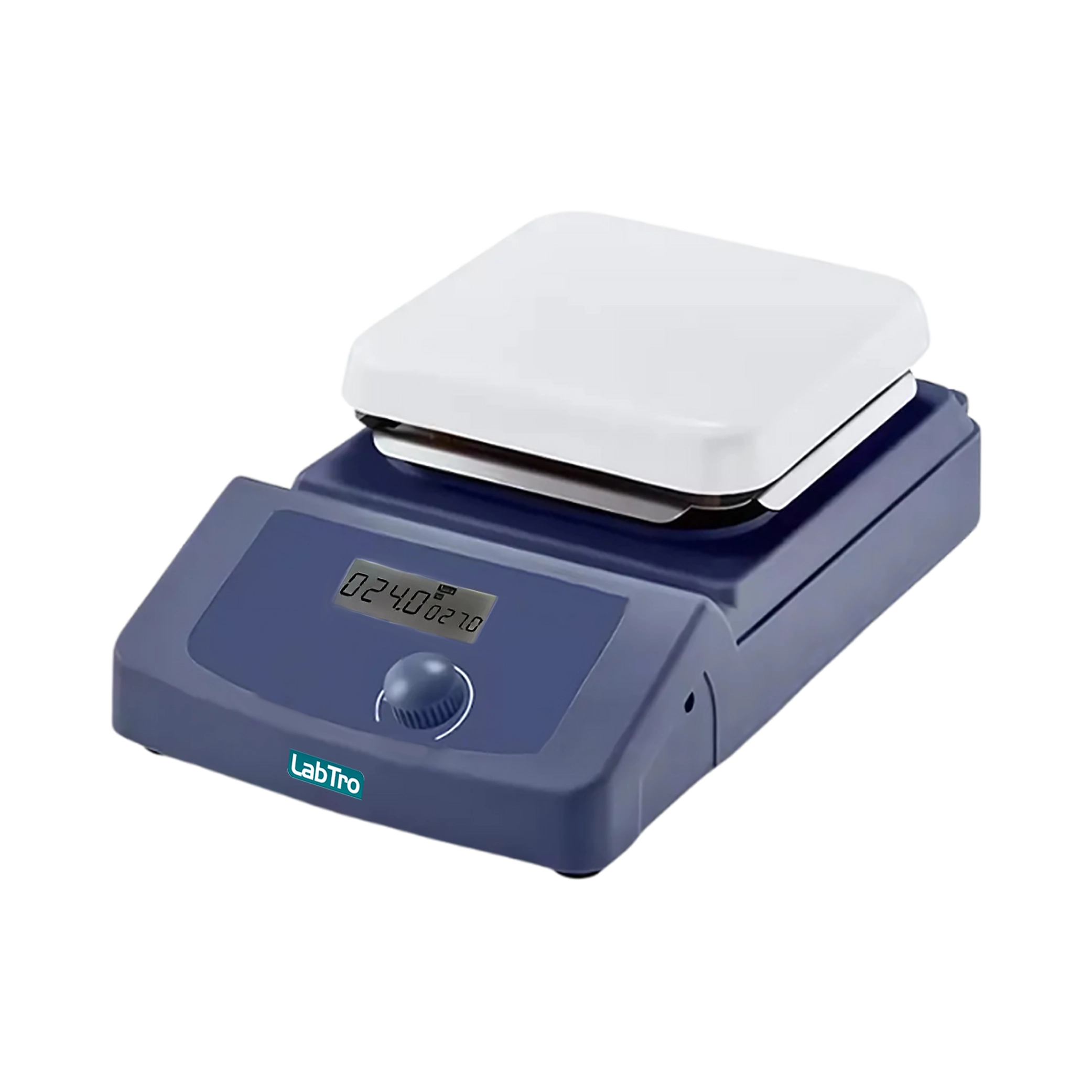

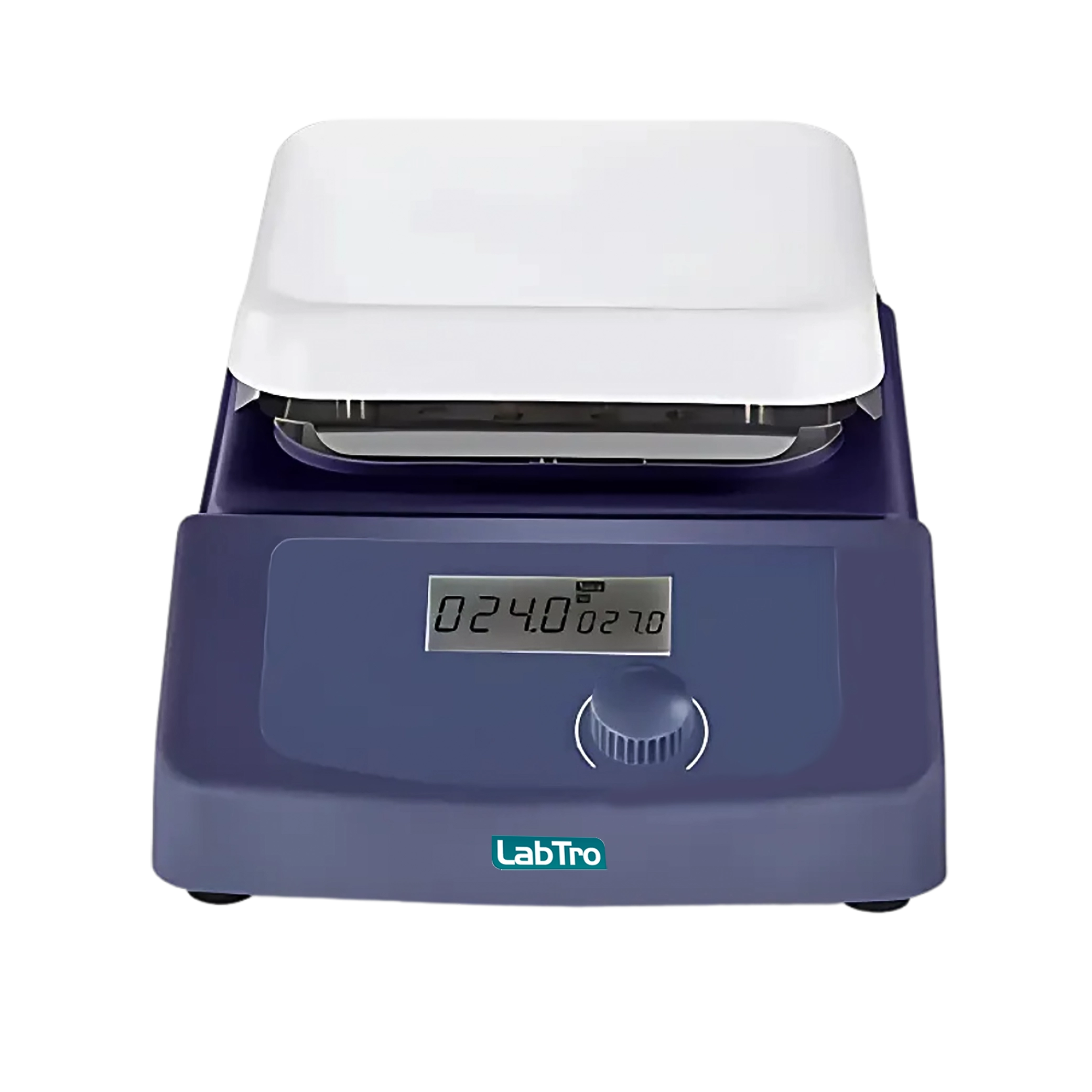

Digital Hot Plate LT-HP301

Digital Hot Plate LT-HP301 is a low-profile digital hot plate with a precise temperature control system with ±1°C temperature accuracy and a maximum temperature of 380 °C. Designed with aluminum covered ceramic work plate which provides immediate heat transfer. Equipped with a Brushless DC motor and high-resolution LCD screen displaying the accurate temperature. Temperature can be controlled externally with temperature sensor PT1000 having an accuracy of ±0.5 °C.

Catalog

Qty:

$ 1,350.00

Specifications

Heating Temperature Range RT to 380 °C, increment of 5 °C
Temperature Display LCD
Temperature Display Accuracy ±1 °C
Permissible Ambient Temperature And Humidity 5 to 40 ℃, 80 %RH
Overheat Protection 420 °C
Protection Class IP21
External Temperature Sensor PT 1000 (accuracy ± 0.5 °C)
Dimension [W × D × H] 320×180×108 mm
Work Plate Dimension 140×140 mm
Weight 2.2 kg
Voltage 100 to 120 V/200 to 240 V, 50/60 Hz
Heating Output 500 W
Power 510 W

Features

  • Featured with maintenance-free brushless DC motor
    Adopts digital temperature control with a maximum heating temperature of 380 °C
    Designed with high-resolution LCD screen, displaying the actual temperature
    Equipped with Aluminum covered ceramic work plate with immediate heat transfer
    Can be connected to temperature sensor PT1000 for controlling the temperature

Application

  • They are used for low viscosity liquids or solid mixing widely used in Research and education for material analysis and liquid mixing. Food industry for food additive, dairy products, and Nutritional analysis. Biological engineering for biological reagents and biochemistry.
