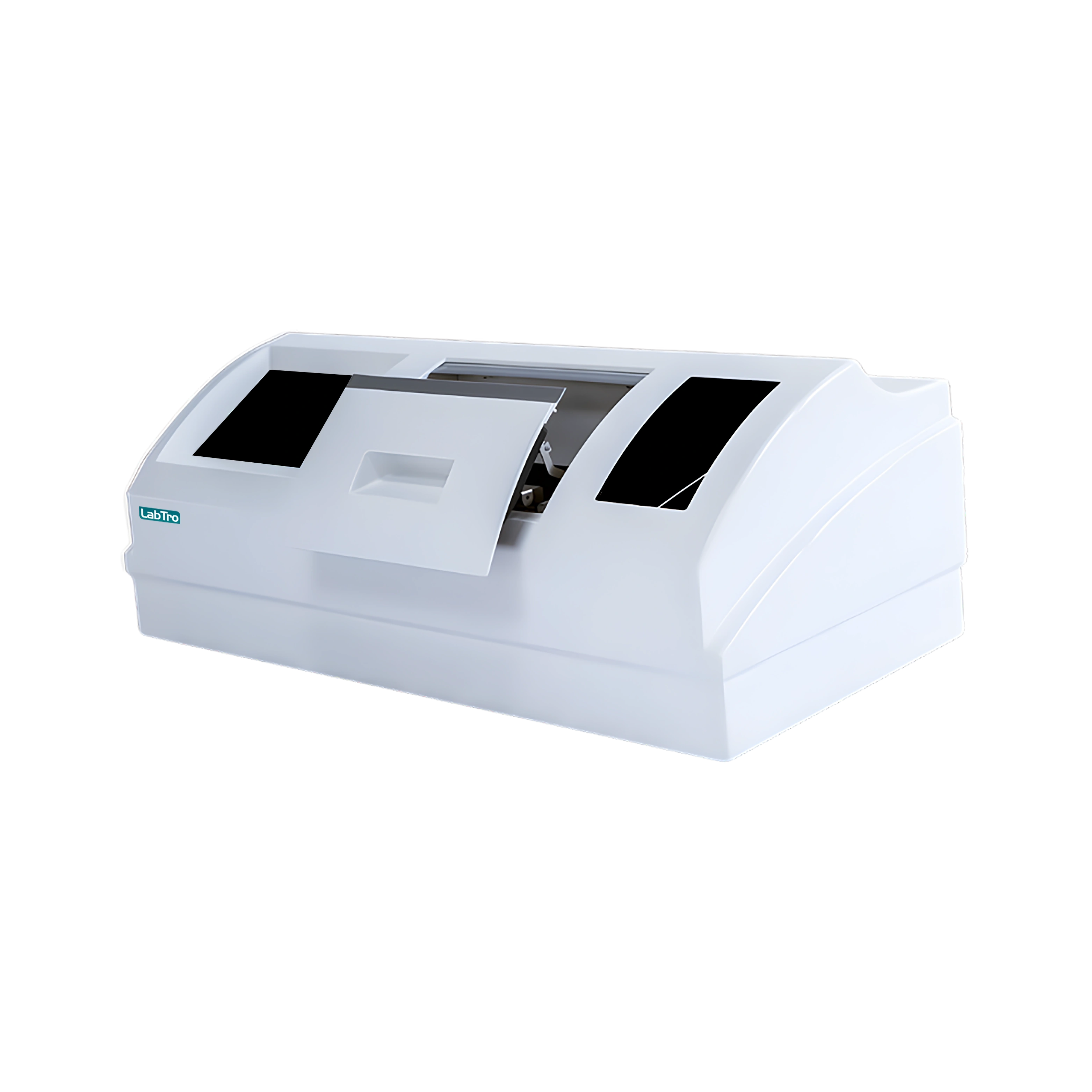

Digital Automatic Polarimeter LT-DAP302

Digital Automatic Polarimeter LT-DAP302 is an advanced, high-performance instrument designed for precise optical measurements in laboratories. Offers precise optical measurements with dual wavelengths of 589 nm and 546 nm. Equipped with an LED cold light source. Compliant with 21 CFR standards, it ensures secure data through electronic signatures and audit trails. The Peltier system maintains stable temperature control between 10°C to 60°C. Our Automatic Polarimeter is ideal for pharmaceutical, chemical, and academic research.

Catalog

Qty:

$ 18,942.00

Specifications

Measurement Mode Optical rotation, specific rotation, concentration, sugar content, and custom formulas
Light Source LED cold light source + high-precision interference filter
Wavelength 589 nm, 546 nm dual wavelengths
customizable to 365 nm, 405 nm, 436 nm, 578 nm, 880 nm, etc.
Measurement Range Optical rotation ±90°
Sugar content ±259°Z
Minimum Reading 0.0001°
Accuracy ±0.002°
Repeatability 0.002° (optical rotation)
Temperature Control Range 10℃-60℃ (Peltier)
Temperature Resolution 0.01℃
Temperature Control Accuracy ±0.03℃
Display Method 8-inch TFT true color touchscreen
Standard Cuvettes 200mm, 100mm standard type
100mm temperature-controlled type (various lengths of Hastelloy optional)
Transmittance 0.01%
Data Storage 64G (expandable to 256G)
Compliance 21 CFR PART 11, Audit Trail, Electronic Signature
Printing Universal printer, WIFI printing (one printer included)
User Management Yes/Four-level access control
User Disable/Unlock Function Yes
Communication Interface USB connection, RS232 connection, VGA, Ethernet
Instrument Class 0.01 level
Other Optional Accessories Various capacities of 50mm and 200mm long temperature-controlled tubes, mouse, keyboard, printer
Power Supply 220V±22V, 50Hz±1Hz
Power Comsumption 250 W
Net Weight 28kg
Gross Weight 31 Kg

Features

  • High-accuracy optical measurement
  • Cold LED light source
  • Advanced interference filtering
  • Custom formula input option
  • Electronic signature support
  • Integrated method library
  • Wireless and USB connectivity
  • Audit trail compliance

Application

  • Digital Automatic Polarimeter LT-DAP302 is ideal for pharmaceutical analysis, ensuring accurate measurement of antibiotics, vitamins, and glucose. It is also used in food quality control, verifying the purity of monosodium glutamate and sweeteners.
