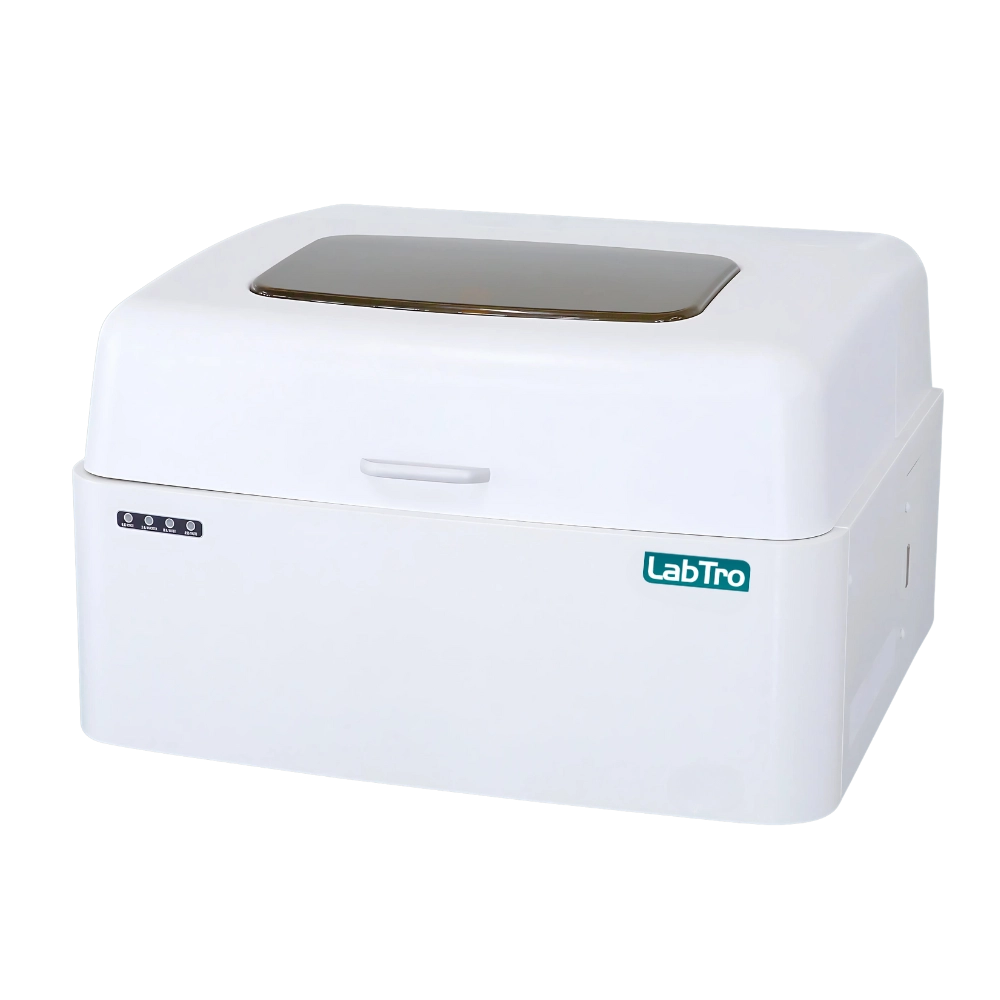

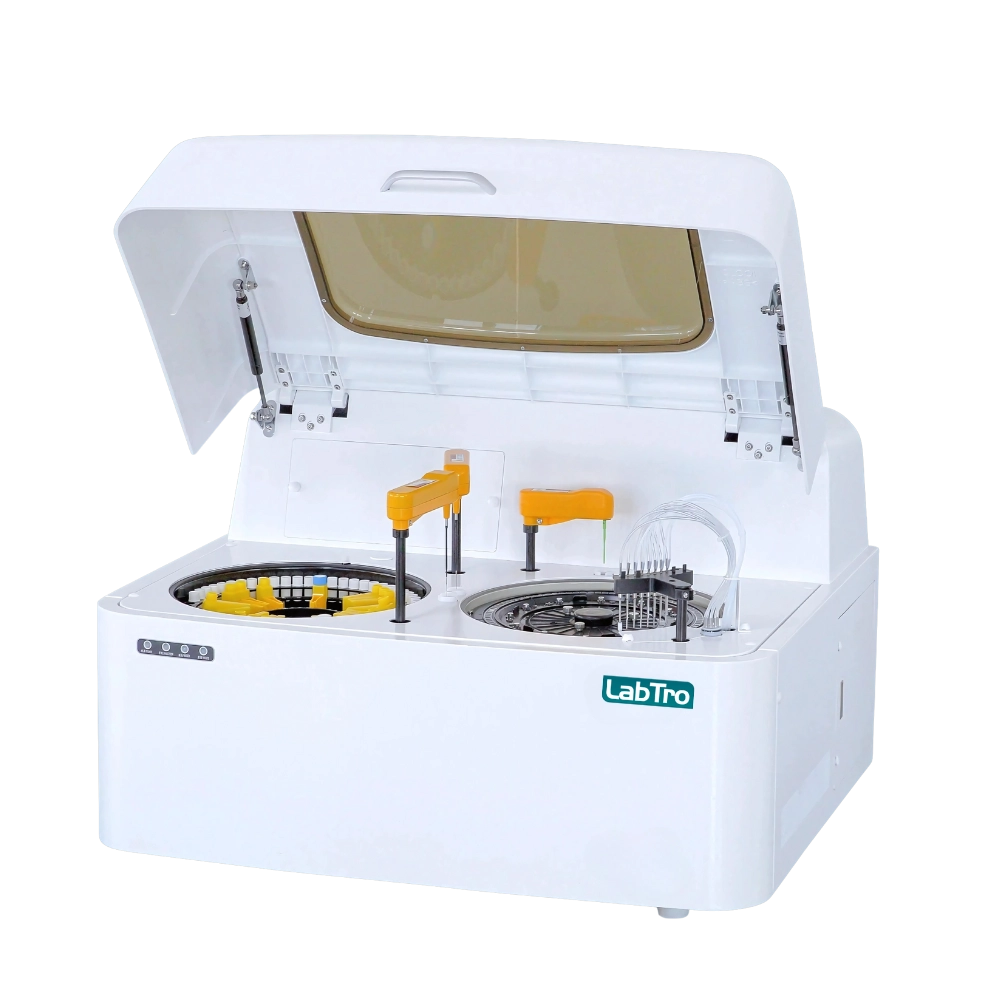

Automatic Chemistry Analyzer LT-CA701

Product Code: LT-CA701

Automatic Chemistry Analyzer LT-CA701 delivers 300 tests per hour, ensuring rapid and efficient operation. It is equipped with a halogen lamp, providing stable and intense light for precise analysis. Built-in with an 8-channel automatic cuvette washing system, it ensures optimal cleanliness. Incorporated with liquid-level detection and collision protection for enhanced sample and reagent probe safety. Our Automatic Chemistry Analyzer is suitable for clinical diagnostics, research laboratories, and medical institutions.

Key Features
Reliable reagent cooling system
Eco-friendly design
Malfunction detection alarm
Auto calibrator diluting function
Multiple report formats
Automatic sample and reagent probe washing station
$ 9,746.00

Qty:

Catalog
Need technical specifications, pricing or application assistance? Contact our product specialists.
Technical Data

Product Specifications

Throughput
300 Tests/hour
Analytical System
Random Access
Method
Endpoint, Rate, Fixed Time, Immunoturbidimetric, 1-2 reagent/serum blank
Assay Tests
80 Tests
Sample Volume
1 to 100µL
Reagent Volume
1µL to 400µL
Sample Position
40 Positions (80 Optional)
Reagent Position
40 Positions (80 Optional)
Wavelength
340 to 810nm
Absorbance
0 to 2.5A
Absorbance Resolution
0.0001A
Absorbance Accuracy
±0.0003A
Repeatability
±2%
Washing
8 Channels Automatic Washing System
Reagent/Sample Probe
With Liquid Level Sensor
Cuvette
High Quality UV-Transmitted Plastic Cuvette, Quartz Cuvette (Optional)
Light Source
Halogen Lamp
Reaction Time
0 to 999 Seconds
Sample Dilution/Retest
Available for Samples Out of Range or Insufficient
Alarm
Automatic Alarm for Malfunction
Calibration
Linear, Non-linear, Multi-point, K Factor
Quality Control
Levy Jennings Quality Control Program at 3 Levels
Software
Windows XP or Vista
Interface
Optional Barcode, New Card Control System Available
Power Supply
220V/50Hz or 110V/60Hz
Dimensions
850×720×530 mm
Weight
90 kg
Performance

Features & Benefits

  • Reliable reagent cooling system
  • Eco-friendly design
  • Malfunction detection alarm
  • Auto calibrator diluting function
  • Multiple report formats
  • Automatic sample and reagent probe washing station
Laboratory Uses

Applications

Automatic Chemistry Analyzer LT-CA701 is suitable for various biochemical assays on biological samples such as blood, serum, urine, and plasma, clinical diagnostics, disease detection, and patient monitoring.

Frequently Asked Questions

Find answers to common questions about Automatic Chemistry Analyzer LT-CA701, its operation, specifications, and applications.

Automatic Chemistry Analyzer LT-CA701 is a high-performance automatic chemistry analyzer designed for rapid and precise chemical analysis of biological samples.

It uses a halogen lamp as its light source, providing stable and intense illumination for accurate photometric analysis.

It typically tests serum, plasma, urine, and other body fluids, depending on the specific test being run.

The analyzer is well-suited for use in clinical diagnostics, research laboratories, and medical institutions, making it versatile for a wide range of testing needs.

Yes, most automatic chemistry analyzers are designed with user convenience in mind, offering automated features and self-protection systems that reduce manual workload and maintenance frequency.

An Automatic Chemistry Analyzer is a laboratory device designed to perform a wide range of chemical analyses on biological samples.

The analyzer works by performing chemical tests on biological samples, using light-based photometric measurements. The halogen lamp serves as the light source for accurate reading of the samples.

The key advantages include enhanced efficiency, accuracy, and speed of testing processes.

It is equipped with several safety and functionality features such as automatic malfunction alarms, collision sensors, and liquid-level sensors, which help ensure safe operation and prevent errors during testing.

Yes, most Automatic Chemistry Analyzers are designed to process a wide range of biological samples, making it versatile and useful for various types of chemical analyses in laboratory settings.
