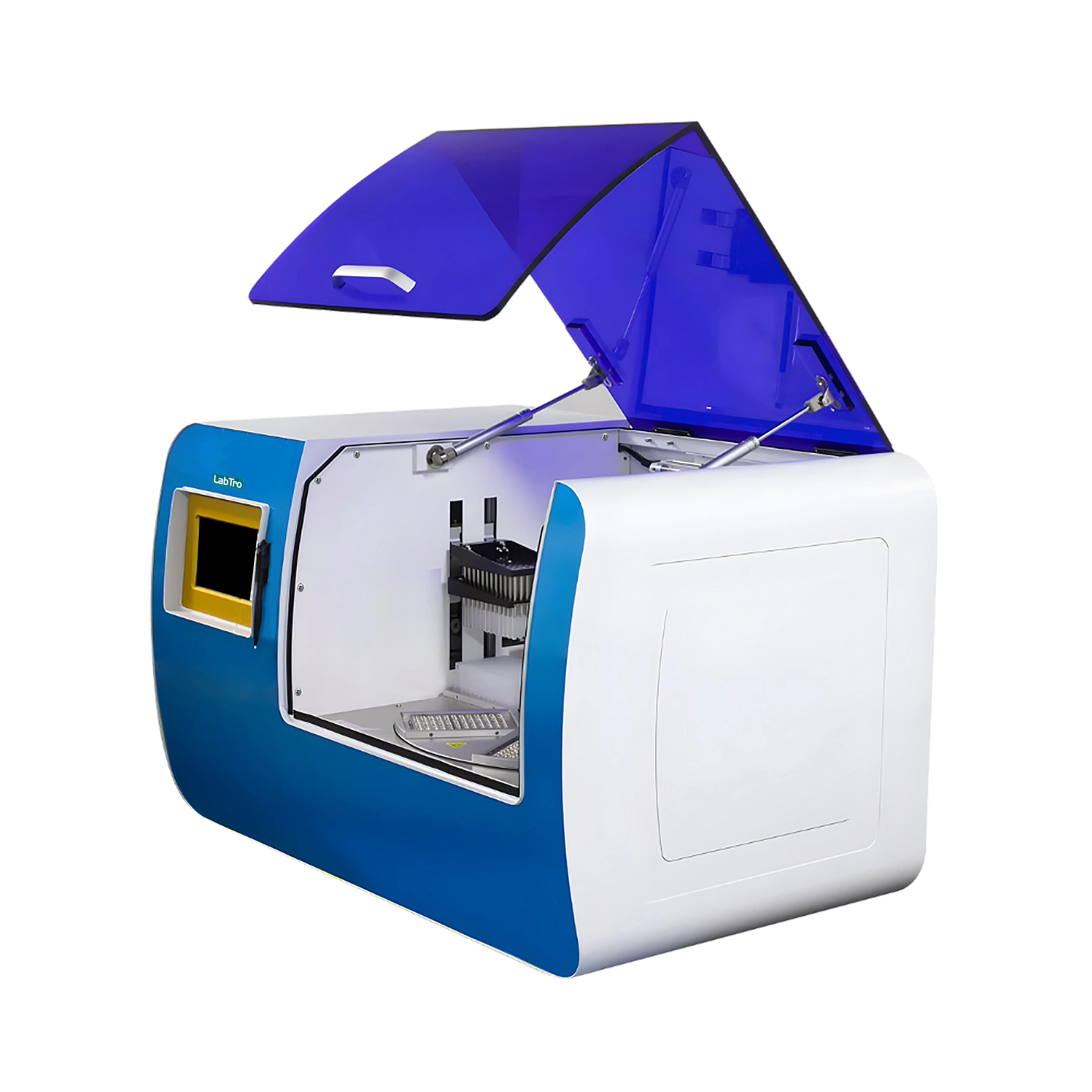

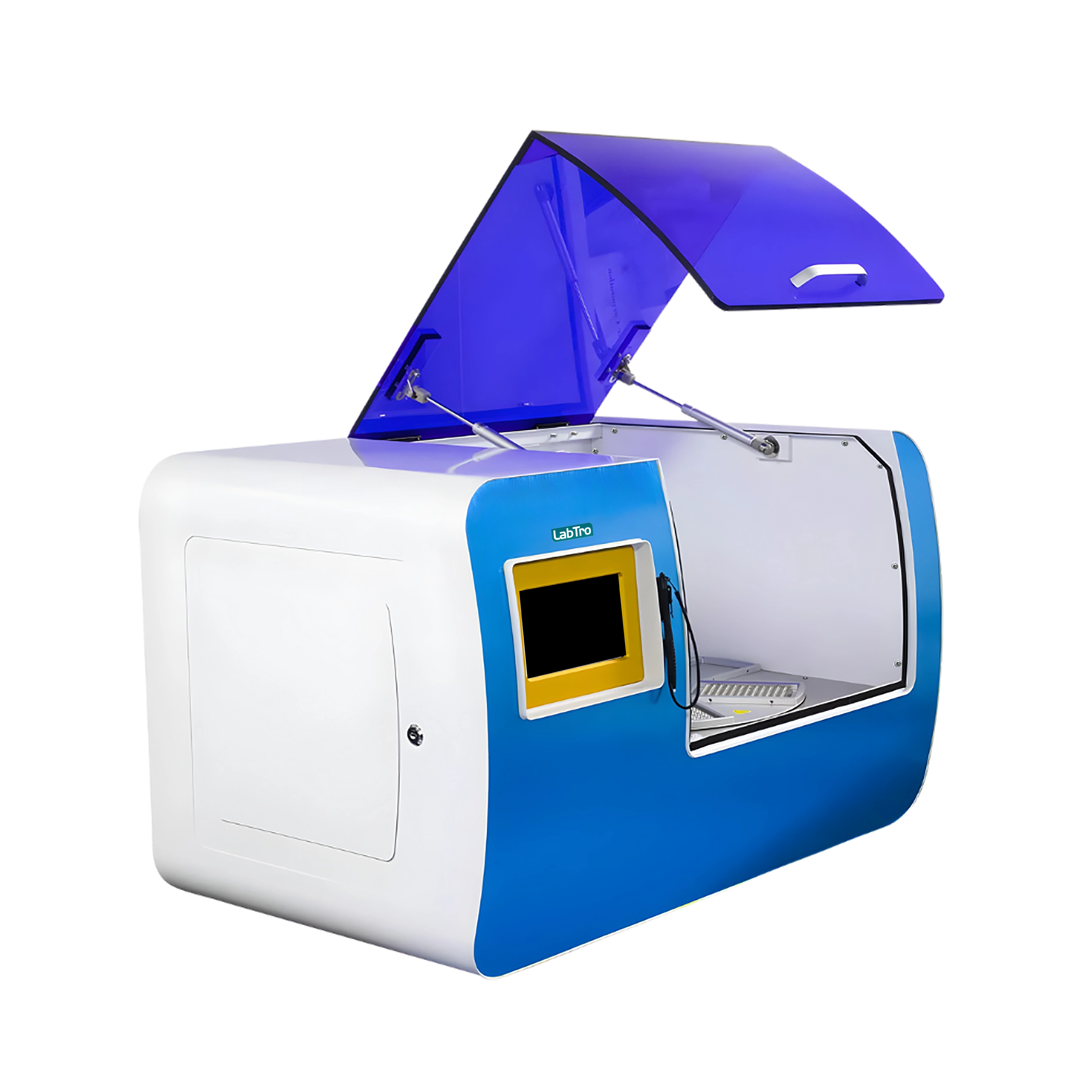

Automated Nucleic Acid Extractor LT-ANE101

Automated Nucleic Acid Extractor LT-ANE101 enables high-efficiency DNA/RNA purification using magnetic bead technology. It processes up to 96 biological samples simultaneously for high-throughput workflows. Equipped for efficient bead recovery to ensure dependable analytical results. Designed to support various reagents for multiple diagnostic applications. Our Automated Nucleic Acid Extractor integrates cold storage to preserve sample integrity during operation.

Catalog

Qty:

$ 7,810.00

Specifications

Sample Capacity 24 or 96 samples per run
Configuration Options Standard or high-volume setup
Well Volume 2.2 mL (standard), 11 mL (large volume)
Sample Types Blood, tissue, serum, cells, fluids, food, etc.
Extraction Method Magnetic bead-based
Processing Time 20 to 40 minutes (for full batch)
Magnetic Strength Above 4500 Gauss
Bead Recovery Over 99% accuracy
Mixing Speed 5-level adjustable mixing
Temperature Range 4°C to 100°C
Heating Speed 2.5°C per second
Temperature Control Dual heating and cooling
Reagent Support Works with multiple reagent kits
Contamination Control Spill protection and air exhaust system
Control System Windows interface with touchpad
Program Storage Up to 700 saved protocols
Data Management Compatible with an external sample library

Features

  • 96-sample batch processing
  • High magnetic bead recovery
  • Supports 100+ reagent types
  • Contamination control with HEPA filter and UV lamp
  • Direct extraction from untreated specimens
  • Built-in 4℃ sample preservation system

Application

  • Automated Nucleic Acid Extractor LT-ANE101 is ideal for extracting and purifying high-quality DNA/RNA for downstream applications such as qPCR, molecular diagnostics, gene analysis, and infectious disease research.
