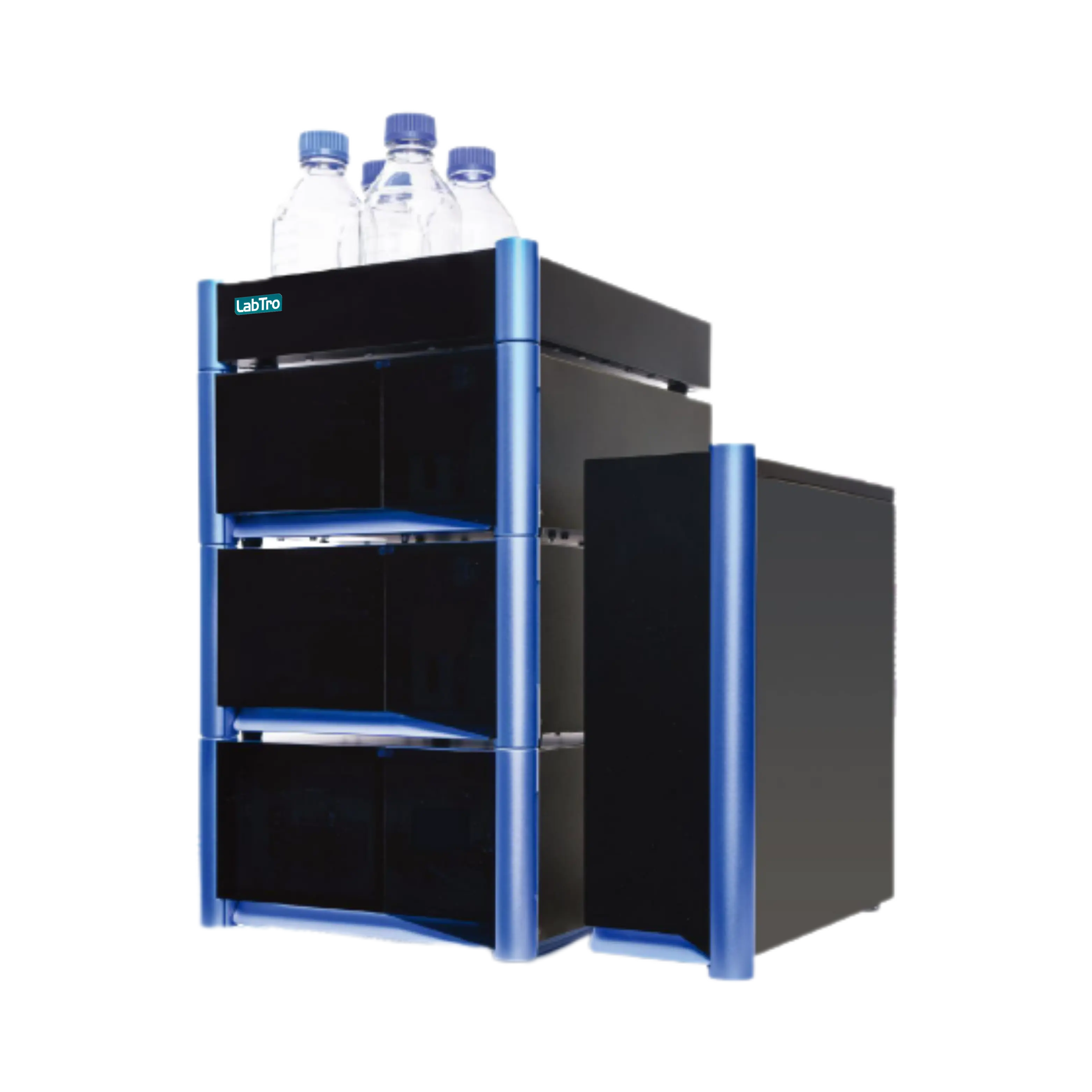

Analytical HPLC System LT-AHS103

Labtro Analytical HPLC System LT-AHS103 operates with 70 MPa maximum pressure keeps sample analysis moving from injection through compound separation and detector response in one continuous process. Organized solvent delivery maintains a steady analytical sequence while generated chromatograms support result verification and record keeping. Continuous sample processing improves laboratory throughput with clear, repeatable analytical data for routine testing.

Catalog

Qty:

$ 36,850.00

Specifications

Pump Type Binary high-pressure constant flow pump
Pump Flow Range 0.001 to 10.000 mL/min
Pump Flow Accuracy ≤ ±0.2%
Pump Flow Stability RSD ≤ 0.06%
Pump Maximum Pressure 70 MPa
Pump Pressure Display Error ±0.3 MPa
Pump Pressure Pulsation ≤ 0.1 MPa
Pump Gradient Mixing Accuracy ≤ ±0.5%
Pump Gradient Composition Accuracy ≤ 0.1% RSD
Pump Gradient Composition Range 0 to 100%
Pump Communication UDP
Pump Power Consumption 300 W
Pump Power Supply AC 110–220 V, 50–60 Hz
Pump Dimension 450 × 350 × 180 mm
Pump Weight 18 kg
Autosampler Type Automatic liquid sampler
Autosampler Injection Range 0–100 μL (Standard), 1–2000 μL (Optional)
Autosampler Injection Speed ≤10 s
Autosampler Sample Residue <0.002%
Autosampler Injection Repeatability RSD <0.2%
Autosampler Capacity 120 × 2 mL or 210 × 1 mL vials
Autosampler Maximum Pressure 45 MPa
Autosampler Power Consumption 30 W
Autosampler Power Supply AC 110–220 V, 50–60 Hz
Autosampler Dimension 440 × 378 × 180 mm
Autosampler Weight 13 kg
UV Detector Type UV-Visible detector
Detector Wavelength Range 190 to 800 nm
Detector Wavelength Accuracy ±1.0 nm
Detector Wavelength Repeatability ≤ ±0.1 nm
Detector Spectral Bandwidth 8 nm
Detector Noise ≤ ±0.25 × 10⁻⁵ AU
Drift ≤0.5 × 10⁻⁴ AU/h
Detector Linearity ≥2.5 AU
Minimum Detectable Concentration 1 × 10⁻⁹ g/mL
Light Source Deuterium and Tungsten lamps
Detector Maximum Pressure 1500 psi
Detector Sampling Frequency 5–80 Hz
Detector Time Constant 0.1–5.0 s
Detector Power Consumption 100 W
Detector Power Supply AC 110–220 V, 50–60 Hz
Detector Dimension 440 × 378 × 160 mm
Weight 10 kg
Diode Array Detector Type Diode Array Detector (DAD)
Array Elements 512
Wavelength Range 190 to 800 nm
Spectral Resolution 2.4 nm
Array Resolution 1.2 nm
Wavelength Accuracy ±1.0 nm
Dynamic Noise ≤ ±1.0 × 10⁻⁵ AU
Baseline Drift 1.0 × 10⁻⁴ AU/h
Linearity ≥2.0 AU
Lamp Deuterium lamp
Detection Pool 10 mm, 11 μL
Maximum Pressure 1000 psi
Power Supply AC 110–220 V, 50–60 Hz
Column Oven Type Column oven
Temperature Range Ambient +5°C to 99°C
Temperature Accuracy ±0.1°C
Temperature Precision ≤0.1°C
Communication RS485 / UDP
Power Consumption 110 W
Oven Power Supply AC 220 V ±10%, 50 Hz
Dimension 120 × 65 × 570 mm
Oven Weight 4.2 kg

Features

  • Binary high-pressure solvent delivery
  • Stable gradient flow control
  • Precise flow regulation
  • Continuous laboratory operation
  • Integrated chromatography communication
  • Modular HPLC configuration

Application

  • Solvent Delivery: Maintains stable mobile phase flow.
  • Gradient Elution: Mixes solvents for separation.
  • Sample Analysis: Supports consistent analytical runs.
  • Method Execution: Follows programmed flow conditions.
  • Column Operation: Delivers steady pressure to the column.
  • Routine Processing: Maintains continuous sample sequences.
